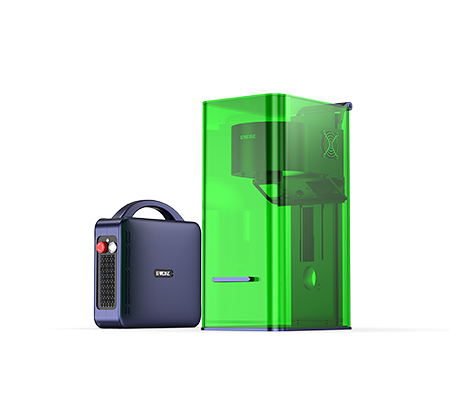

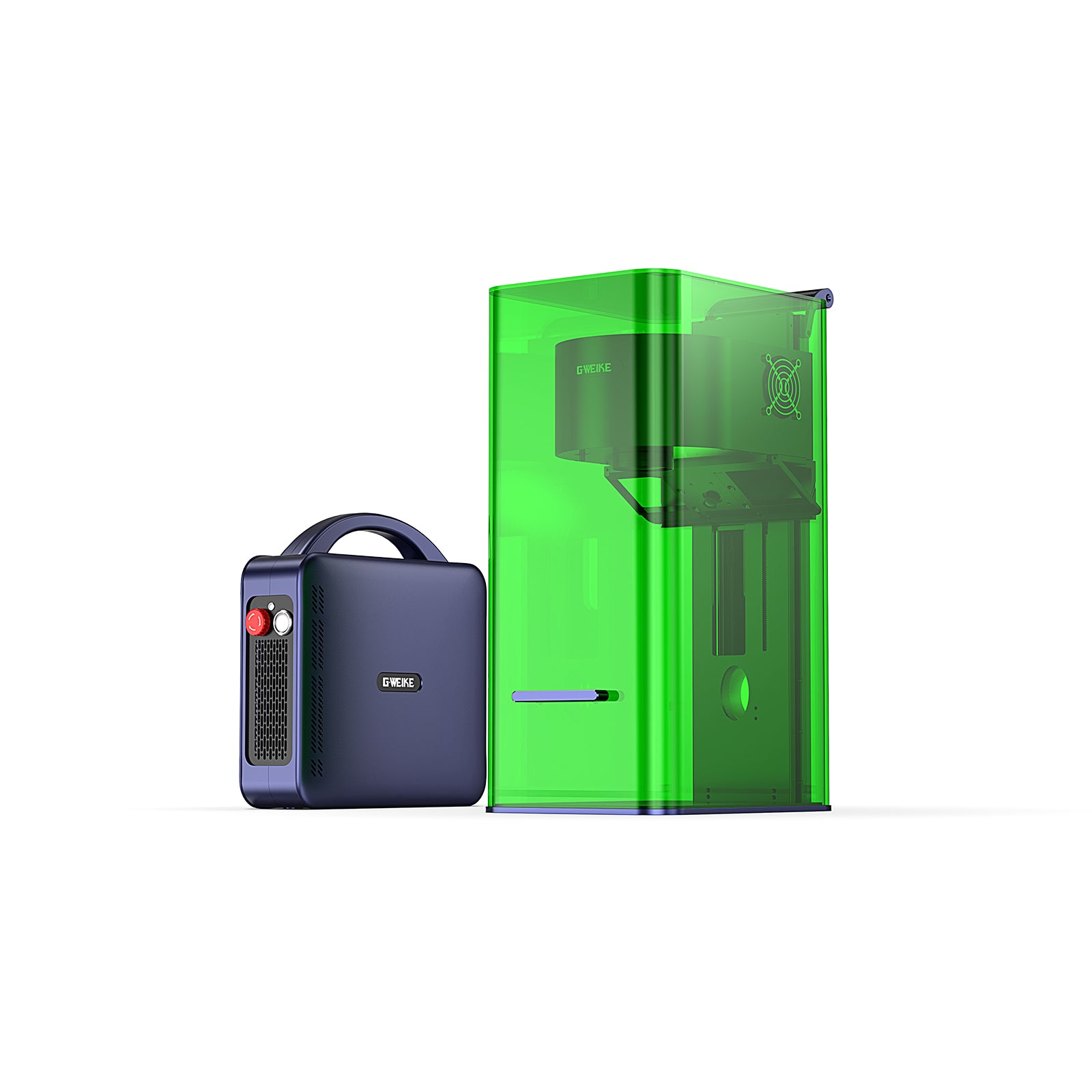

GWEIKE G3
World’s 1st 50W Fiber & 20W Diode Dual Laser Engraver
World's First 50W Fiber + 20W Diode Laser
Work On Almost Any Material
Fiber Laser
50W/30W/20W
Diode Laser
20W
50W Fiber Laser
The fiber laser artfully engraves on stainless steel, aluminum, alloy, gold, silver, brass, plastic, leather, rubber & more.
Stainless Steel
Brass
Aluminum
Gold

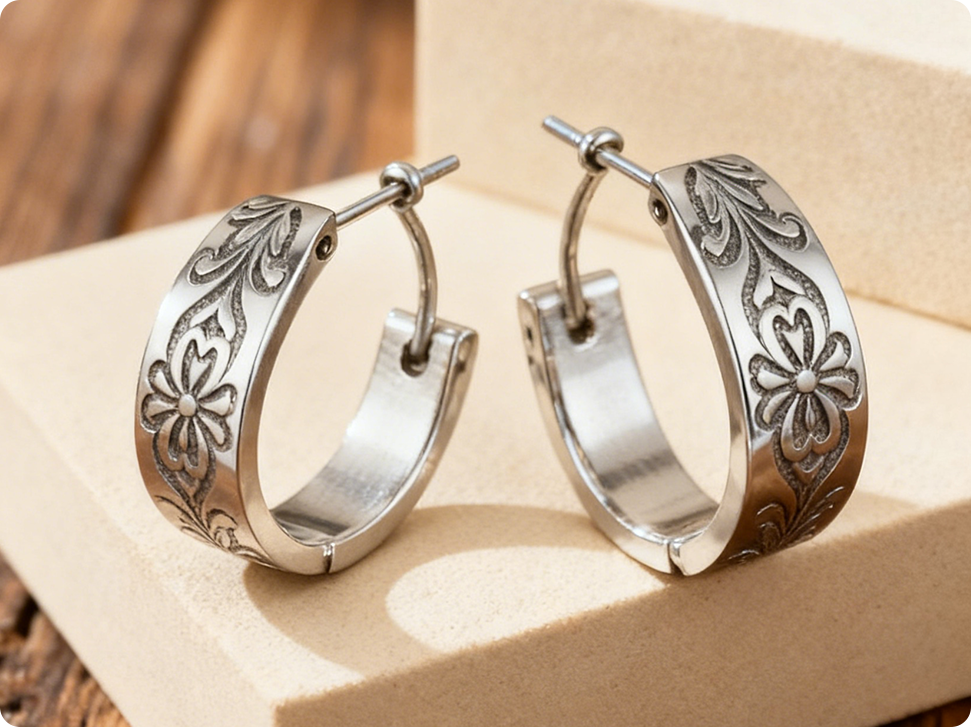

Silver

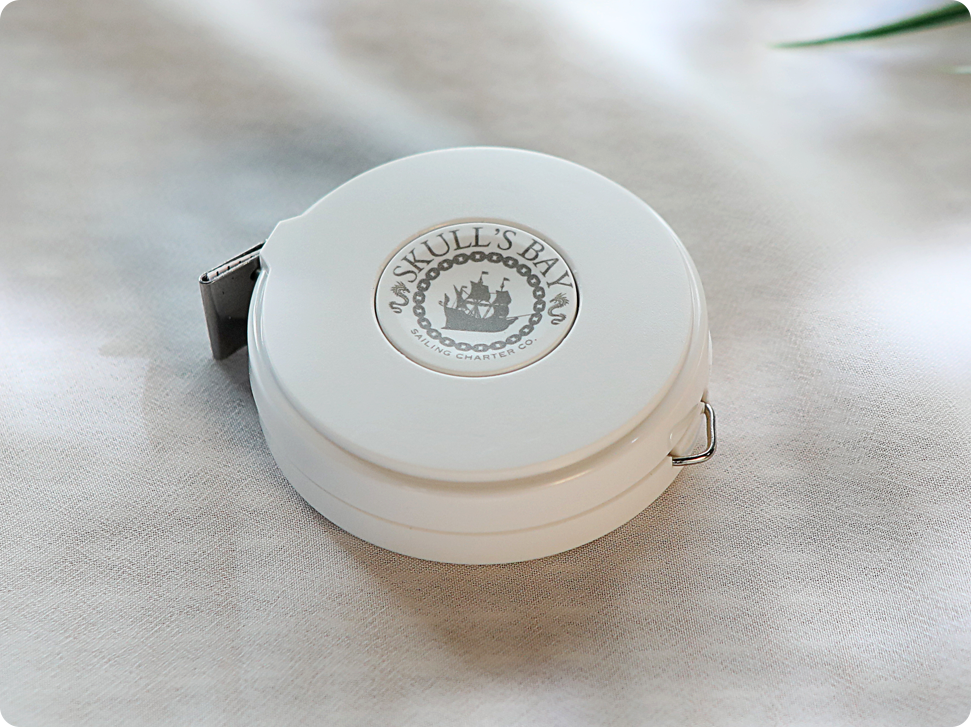

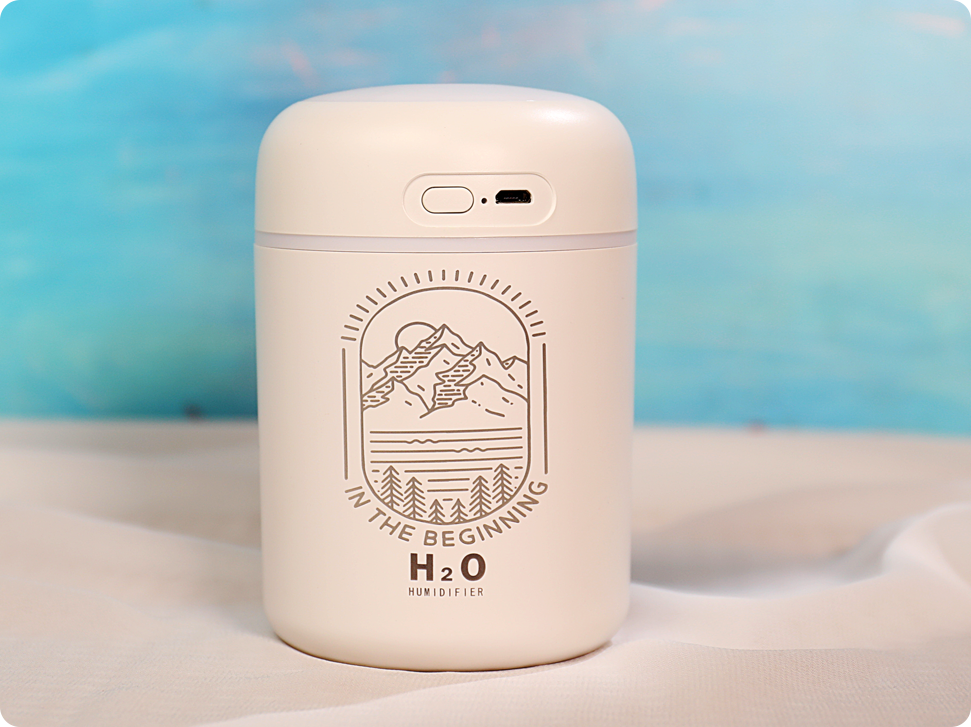

Plastic
Leather
20W Diode Laser
The diode laser engraves properly on wood, acrylic, leather, glass, rock, paper, rubber, food and so on.
Leather
Wood
Rubber
Paper
Glass
Acrylic
Rock
Superior 3D Embossing, Faster Speed
At 100% power, the GWEIKE G3's 50W laser outperforms 20W fiber lasers — delivering 3x the speed and 200% finer detail.
Superior 3D Embossing,
Faster Speed
More Power, Deeper Cuts
-
2mm copper and stainless steel
50W laser cuts up to 2mm copper and stainless steel with mirror-finish edges.
-
20mm wood
20W diode laser cuts through up to 20mm wood with carbon-free edges.

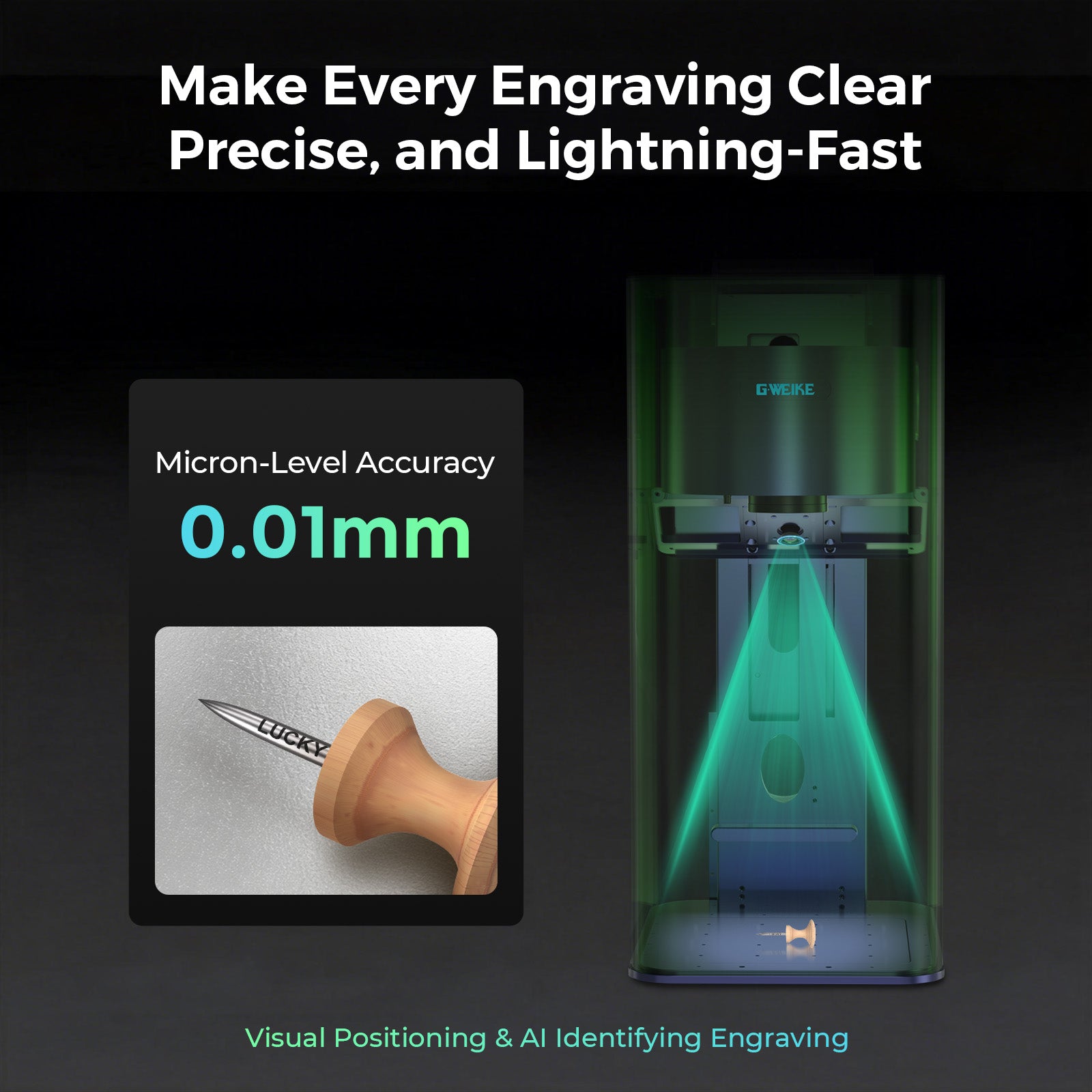

Camera Make Processing Easy
At 100% power, the GWEIKE G3's 60W MOPA laser outperforms 20W fiber lasers — delivering 3x the speed and 200% finer detail.
Autofocus
Industrial-grade high-precision autofocus,
Visual Ranging System, incredible precision
and incomparable speed. One click
makes production smoother.

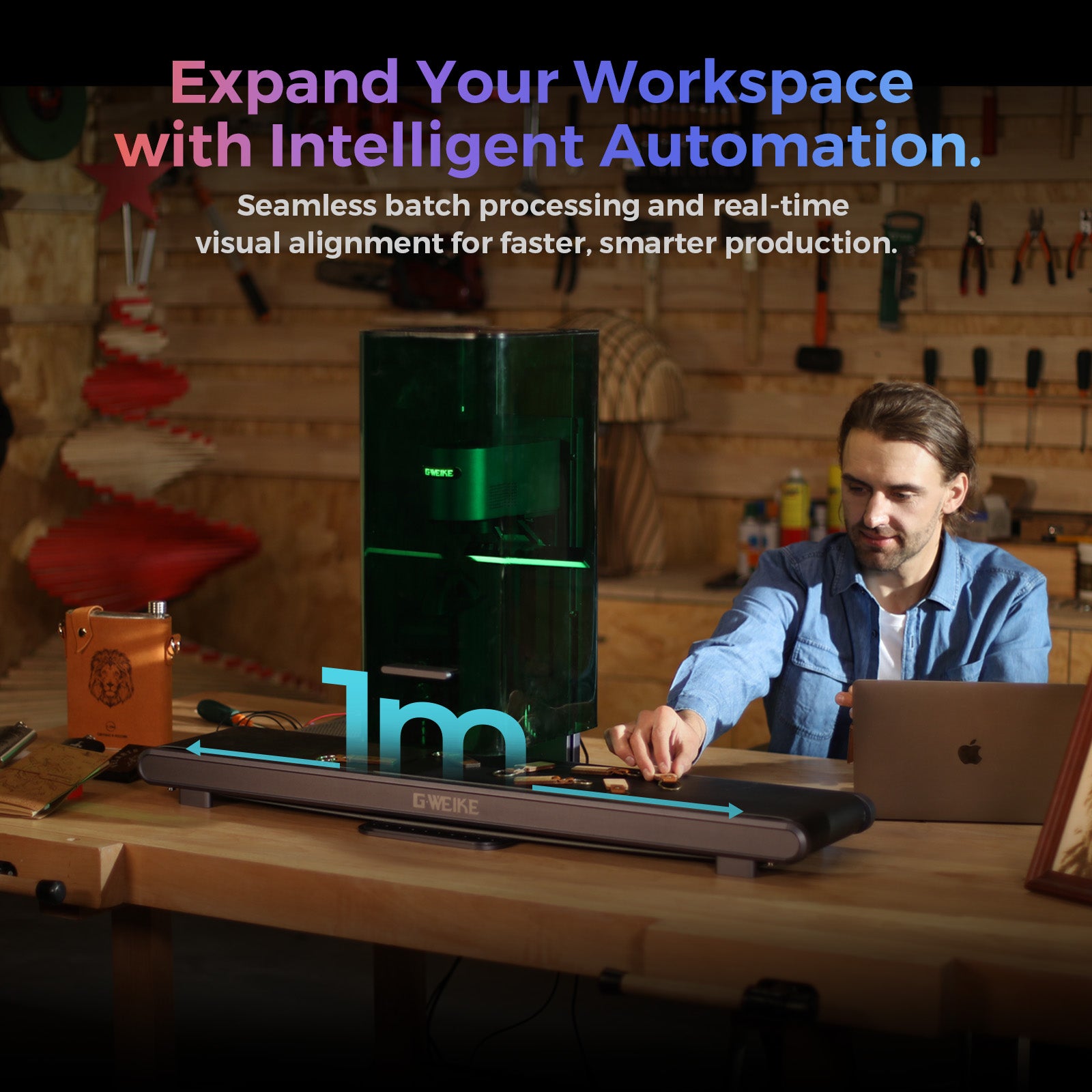

Automated Conveyor Feeder
The GWEIKE G3 automated conveyor handles full 1-meter sheets, eliminating splicing gaps and boosting hroughput
by 40%! Achieve fully automated, continuous processing of oversized and long-format materials.
Enhances Your Business's Prodution Potential
With visual positioning and the smart camera, simply load the workpieces onto the conveyor, and have them auto filled and finished in just minutes.

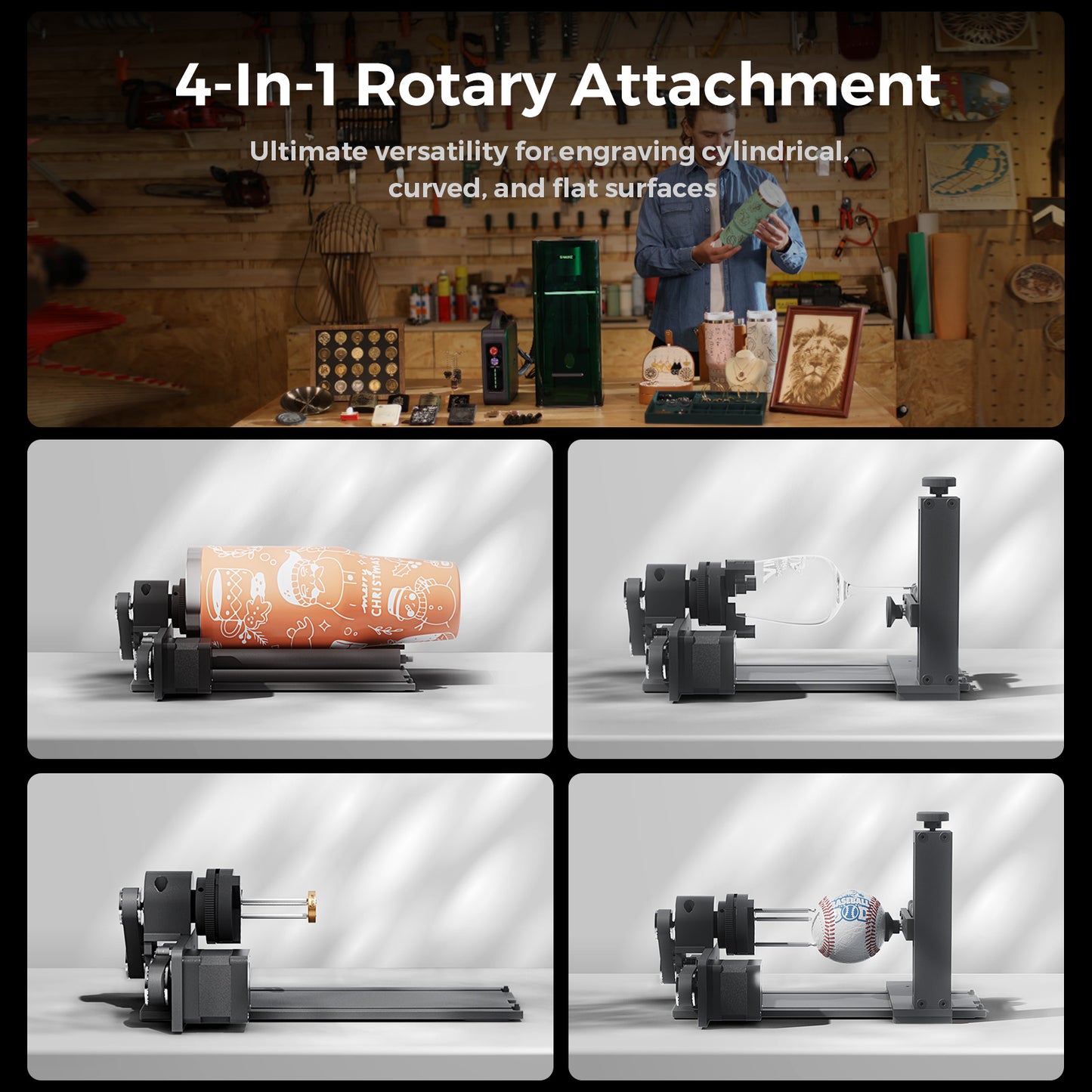

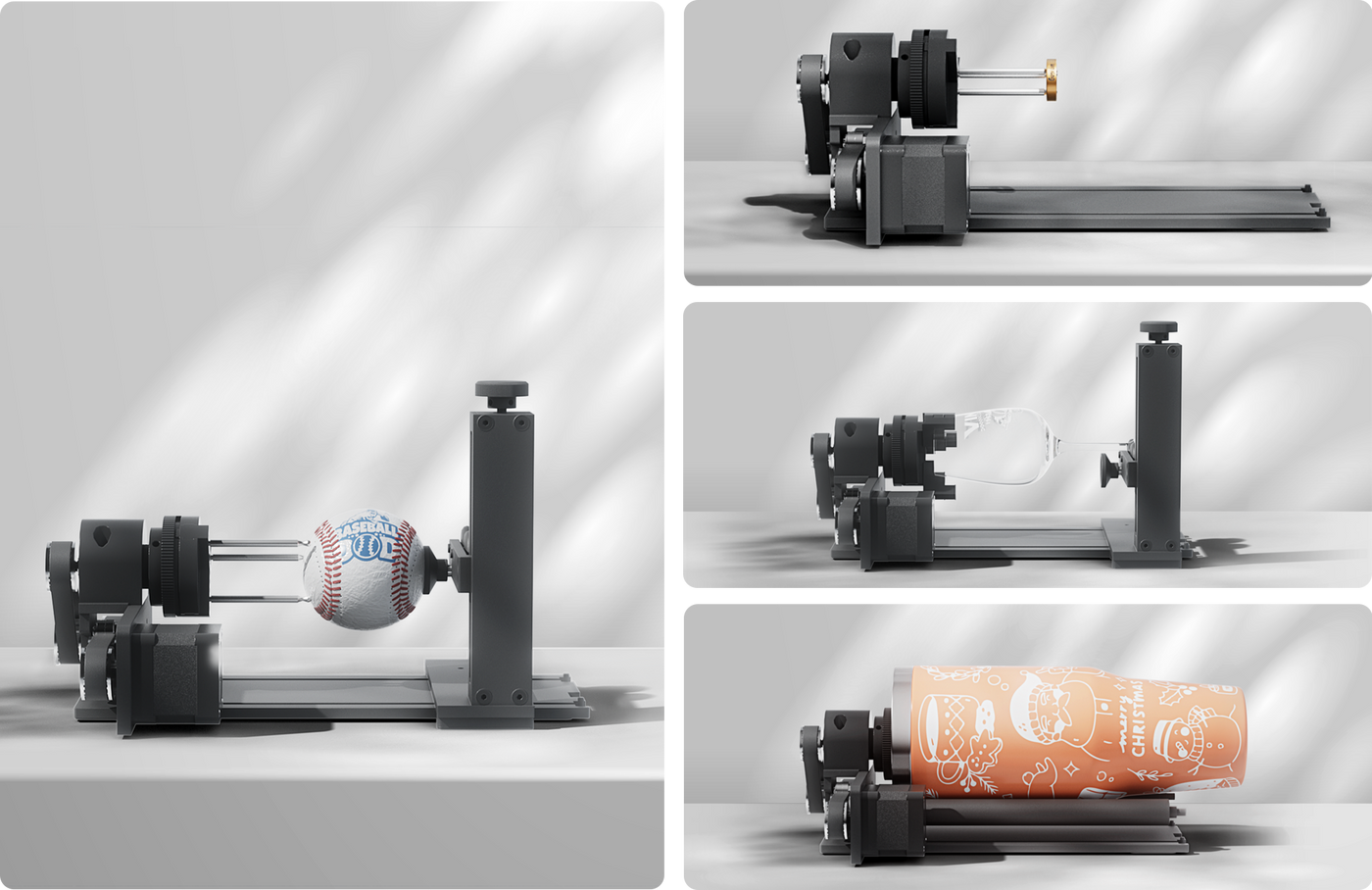

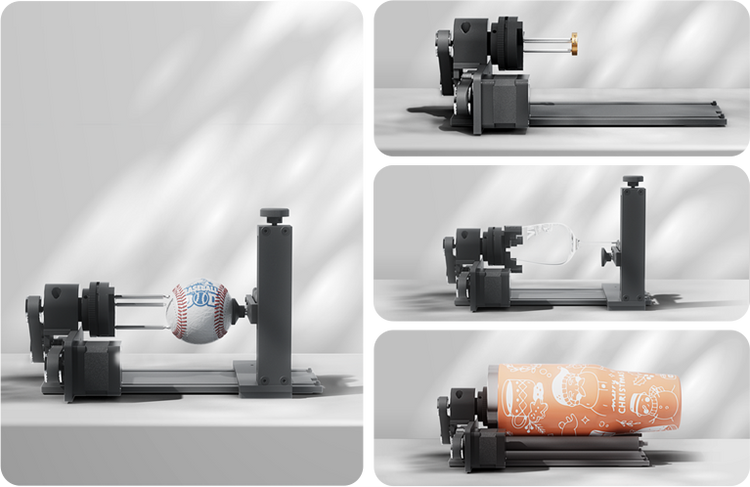

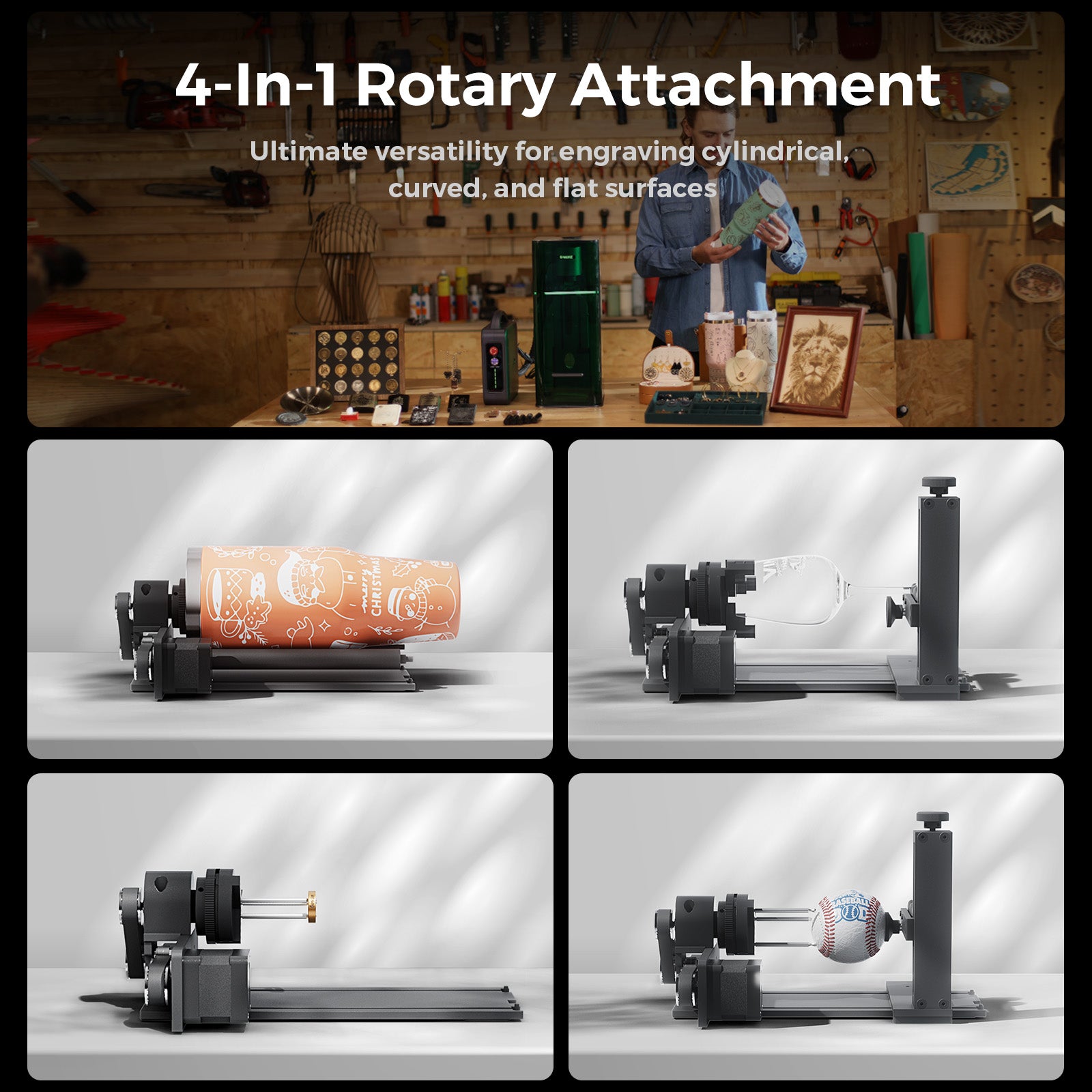

4-In-1 Rotary Attachment
Featuring an innovative 4-in-1 rotary axis, it supports engraving on most common cylindrical and spherical objects — including tumblers, mugs, ornament balls, rings, and more — with ease.
OD5+ Fully Enclosed Safety Shield
Fully enclosed design with OD5+ eye protection shield for a cleaner, safer workspace—effectively blocks dust, smoke, and laser leakage.
Boost Your Business
Ready to Personalize Anywhere
Life Hacking: Smart Home & Innovative Toys.
Prototype smart devices and functional models for inventive home solutions.
Customer Engagement & Sales
Generate unique inventory, from personalized gifts to limited editions, enhancing foot traffic and engagement.
Fashion Design: Jewelry & Style.
Create intricate patterns and customized jewelry with precision engraving.
Small Business & Studios
Go beyond limits with true metal engraving capability alongside superior performance on wood, acrylic, and more.

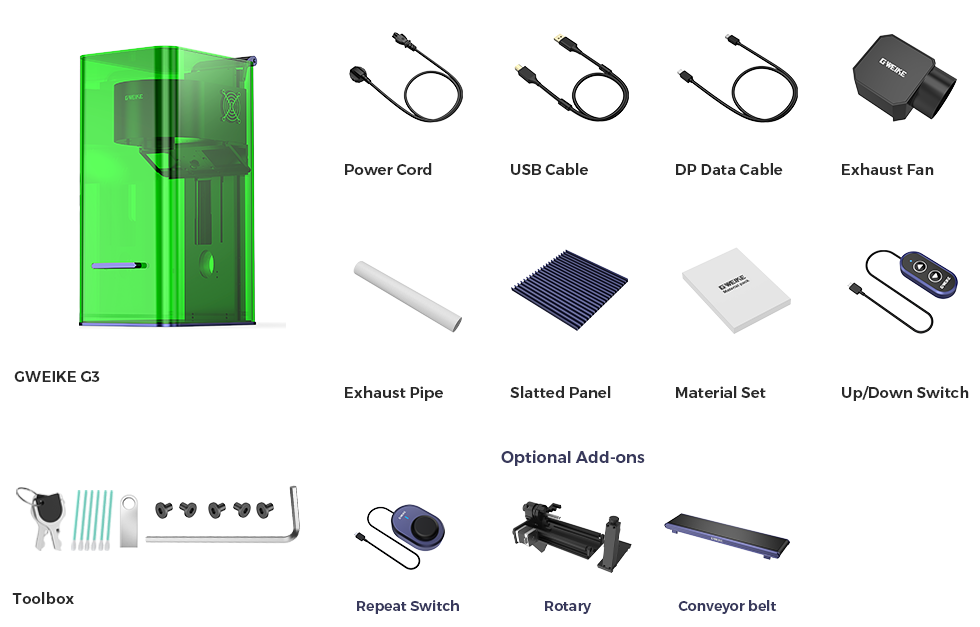

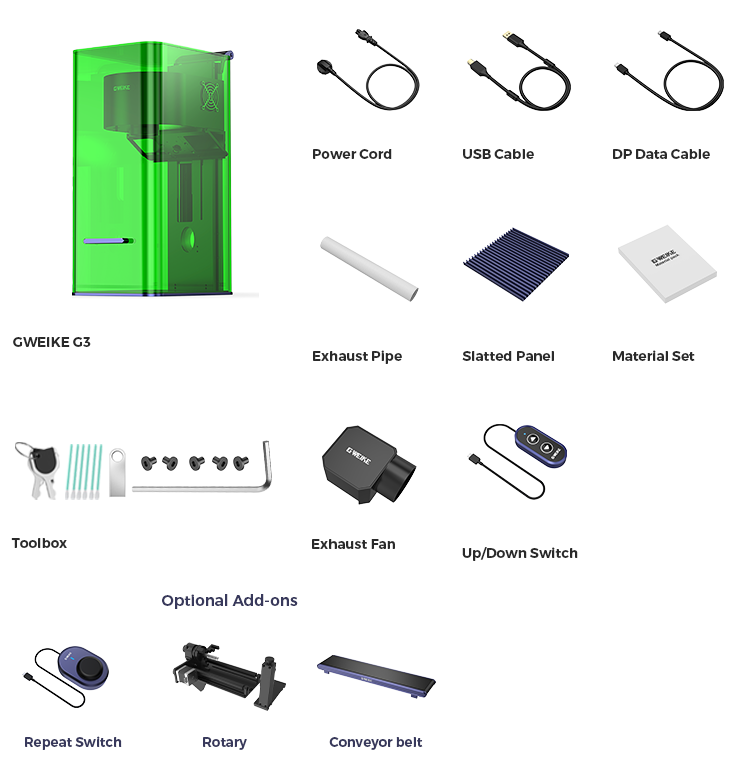

Package List
Specifications
- Laser Power & Laser Source
50W 1064nm Fiber Laser + 20W 450nm Diode Laser
30W 1064nm Fiber Laser + 20W 450nm Diode Laser
20W 1064nm Fiber Laser + 20W 450nm Diode Laser
- Working Area
6.7''× 6.7" (170 × 170 mm)
6.7" × 19.6" (With Conveyor) (170 × 1000 mm)

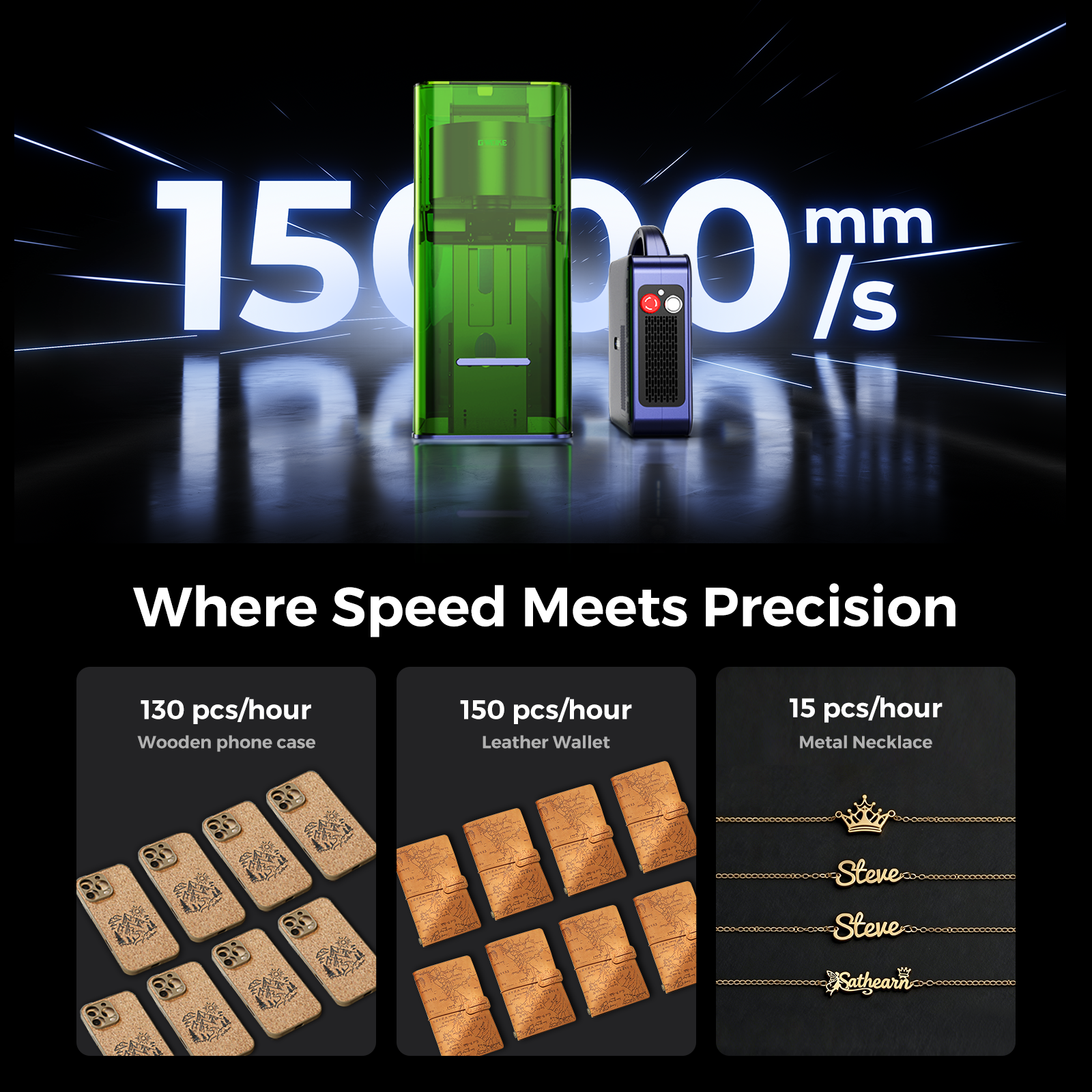

- Max. Working Speed
15000mm/s
- Processing Mode
Laser Engraving & Laser Cutting
- Supported Materials
Laser Cutting:
Diode Laser: Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic
Fiber Laser: Brass, Stainless Steel, Aluminum
Laser Engraving:
Diode Laser: Paper, Wood, Leather, MDF, Stainless Steel, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass and Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal
Fiber Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold and More
- Max. Laser Cutting Capacity(Basswood)
23 mm in Multiple Passes
- Max. Laser Cutting Capacity (Acrylic)
20 mm in Multiple Passes
- Max, Laser Cutting Capacity (Brass)
2 mm in Multiple Passes
- Max, Rotary Engraving Diameter
160mm
- Supported Software
GLASER/LightBurn
- Operating System
Windows/macOS/Android/ios/iPad
- Connection Method
SVG/DXF/JPG/JPEG/PNG/BMP/TIF
- Supported Files
USB/Wifi
- Built-in Camera
16 MP Smart Camera
- Focus Mode
Autofocus
- Positioning Method
Camera Positioning
- Batch Processing
Smart Filling of the Same Shape
- Laser Spot Size
0.08 x0.1 mm(Diode Laser)/0.06 x0.06 mm(Fiber Laser)
- Engraving Precision
0.0027 mm
- Focus Precision
0.5 mm
- Product Dimensions
20.69''x8.66"x13"'(525.5*220*330mm)(without Laser Box)
- Weight
12.2kg
- Supply Voltage
110-240V 50-60Hz
- Max lnput Power
20w : 290w
30w : 360w
50w : 410w
- Cooling Method
Air Cooling
